The more complex the object, the harder it is to fold up. Space satellites often need many small motors to fold up an instrument, and people have difficulty simply folding up a roadmap. Physicists from Leiden and Amsterdam have now designed a structure that folds itself up in several steps.
The results from this research have been published in Nature ("Multi-step self-guided pathways in shape-changing metamaterials").
How often have you folded up a roadmap incorrectly? The folding principle is simple but it involves several steps that need to be performed in the right order. And roadmaps are peanuts compared to the sunshields and instrument arms that satellites fold in and out. Each step requires a small motor that performs its task at the right moment.
Physicists Martin van Hecke (Leiden University/AMOLF) and Corentin Coulais (University of Amsterdam), together with their students, have now designed a structure that folds itself up in several steps when slight pressure is exerted on the sides.

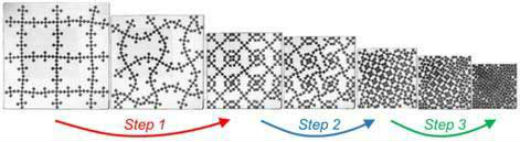

A metamaterial that folds itself up in three steps.
Subsequently applying more pressure leads to the next steps in the folding process. The construction or so-called metamaterial, folds itself up in three steps, which is a record. It also has an inbuilt self-correction mechanism as well. If a production error gives rise to a connection that falls outside the formation, neighboring blocks will rotate incorrectly. However, these blocks subsequently bump into other blocks that in turn push them into the right position.
Van Hecke: “Automatic folding and self-correction are important in the space industry for example, because a lot can go wrong, and errors cannot be tolerated. Equally, if a medical probe gets stuck while folding up, it will be harder to remove from the body. We are now trying to simulate that automatic folding process and to understand it by using far simpler structures. Only once we understand it at a fundamental level will it be possible to design complex structures with a practical application.”
Universiteit van Amsterdam. Posted: Sep 26, 2018.
