Stronger graphene oxide 'paper' made with weaker units.

Want to make a super strong material from nanoscale building blocks? Start with the highest quality building blocks, right?

Wrong - at least when working with "flakes" of graphene oxide (GO).

A new study from Northwestern University researchers shows that better GO "paper" can be made by mixing strong, solid GO flakes with weak, porous GO flakes. The finding will aid the production of higher quality GO materials, and it sheds light on a general problem in materials engineering: how to build a nano-scale material into a macroscopic material without losing its desirable properties.

"To put it in human terms, collaboration is very important," said Jiaxing Huang, Northwestern Engineering professor of materials science and engineering, who led the study. "Excellent players can still make a bad team if they don't work well together. Here, we add some seemingly weaker players and they strengthen the whole team."

The research was a four-way collaboration. In addition to Huang's, three other groups participated, led by Horacio Espinosa, professor of mechanical engineering at the McCormick School of Engineering; SonBinh Nguyen, professor of chemistry at Northwestern; and Tae Hee Han, a former postdoc researcher at the University who's now a professor of organic and nano engineering at Hanyang University, South Korea.

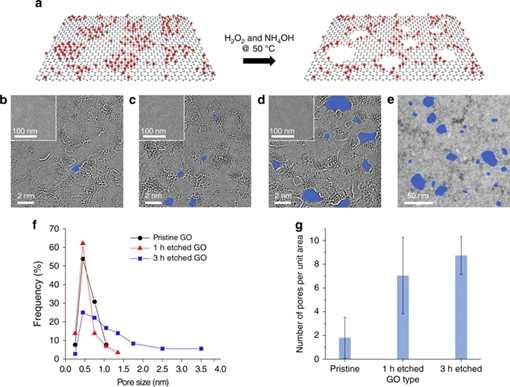

Controlled oxidative etching of GO yields single layers with tunable porosity. a Schematic models of GO and porous GO. Red dots represent sites with oxygen-containing functional groups, which are preferentially etched, leaving holes on the graphene sheet. HR-TEM images of GO sheets b before and after being etched for c 1 h, and d 3 h, respectively. Pores are highlighted in blue color. The corresponding lower-magnification TEM images are shown in the insets. e A low-magnification TEM image of the 5-h-etched GO sample, showing extensive formation of large pores. f Size distribution and g number density of pores found on the starting and etched GO sheets, based on a survey over an area of 500 nm2 in HR-TEM images. Error bars represent the standard deviation (SD).

(© Nature Communications)


The study was published in Nature Communications ("Stiffening of graphene oxide films by soft porous sheets").


High-tech paper

GO is a derivative of graphite that can be used to make the two-dimensional, super material graphene. Since GO is easier to make, scientists study it as a model material. It generally comes as a dispersion of tiny flakes in water. From one end to the other, each flake is smaller than the width of a human hair and only one nanometer thick.

When a solution of GO flakes is poured onto a filter and the water removed, a thin "paper" is formed, usually a few inches in diameter with a thickness less than or equal to 40 micrometers. Intermolecular forces hold the flakes together, nothing more.


Strength from weakness

Scientists can make strong GO in single layers but layering the flakes into a paper form doesn't work too well. While testing the effect of holes on the strength of GO flakes, Huang and his collaborators discovered a solution.

Using a mixture of ammonia and hydrogen peroxide, the researchers chemically "etched" holes in the GO flakes. Flakes left soaking for one to three hours were drastically weaker than un-etched flakes. After five hours of soaking, flakes became so weak they couldn't be measured.

Then, the team found something surprising: Paper made from the weakened flakes was stronger than expected. At the single layer level, one-hour-etched porous flakes, for example, were 70 percent weaker than solid flakes, but paper made from those flakes was only 10 percent weaker than paper made from solid flakes.

Things got even more interesting when the team mixed solid and porous flakes together, Huang said. Instead of weakening the paper made solely from solid flakes, the addition of 10 or 25 percent of the weakest flakes strengthened it by about 95 and 70 percent, respectively.


Effective connection

If GO sheets can be likened to aluminum foil, Huang said, making a GO paper is just like stacking the foil up to make a thick aluminum slab. If you start with large sheets of aluminum foil, chances are good that many will wrinkle, impeding tight packing between sheets. On the other hand, smaller sheets don't wrinkle as easily. They pack together well but create tight stacks that don't integrate well with other tight stacks, creating voids within GO paper where it can easily break.

"Weak flakes warp to fill in those voids, which improves the distribution of forces throughout the material," Huang said. "It's a reminder that the strength of individual units is only part of the equation; effective connection and stress distribution is equally important."

This finding will be directly applicable to other two-dimensional materials, like graphene, Huang said, and will also lead to the design of higher quality GO products. He hopes to test it out on GO fibers next.

Northwestern University. Posted: Aug 15, 2019.
